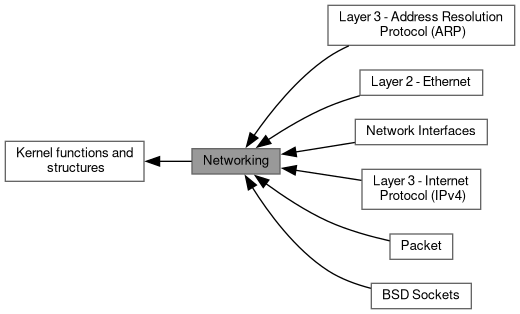

Collaboration diagram for Networking:

Modules
	Layer 3 - Address Resolution Protocol (ARP)
	TCP/IP Illustrated Vol I - Chapter 4 - ARP RFC 826

	Layer 2 - Ethernet

	Network Interfaces

	Layer 3 - Internet Protocol (IPv4)
	TCP/IP Illustrated Vol I - Chapter 5 - IP RFC 791

	Packet

	BSD Sockets
	Berkley Sockets implementation.

Macros
#define	hton(_x)
	Convert an interger to its network representation (big endian)

#define	ntoh(_x)
	Convert an interger from its network representation to that of the host.

Functions
u16	net_internet_checksum (const u16 *addr, size_t size)
	Compute Internet Checksum for `size` bytes beginning at location `addr`. More...

Detailed Description

Networking

This is the core of the kernel's networking API.

The goal for this API is to follow the OSI model's philosophy and organize things in a hierarchical manner.

There should be one sub-api for each "protocol" of each layer. These functions should only interact with THEIR part of the packet, and call the lower/higher layer API's function to process the next part of the packet.

For example, when sending a TCP packet over ethernet, the codepath should look like so:

packet = packet_new()                // create a new packet
tcp_packet_fill(packet)              // responsible for adding L4 info
  -> ipv4_packet_fill(packet)        // same for L3
    -> ethernet_packet_fill(packet)  // same for L2
packet_send(packet)

Warning: All fields and values inside the network API's structures are in big endian (the standard network endianness). Do not forget to use the ntoh and hton functions when comparing with variables that use the architecture's natural alignment.

Important structures/concepts

TODO: Networking

Bufferizing received packets and periodically receiving batches of them
Transport layer (TCP/UDP)

Function Documentation

◆ net_internet_checksum()

u16 net_internet_checksum	(	const u16 *	addr,
		size_t	size
	)

See also: RFC1071 - 4.1

Compute Internet Checksum for size bytes beginning at location addr.
